Developed an dental extraoral suction system in 1994
Released Free-100 Mini in 2015
Sales exceeded 10,000 sets in 2019

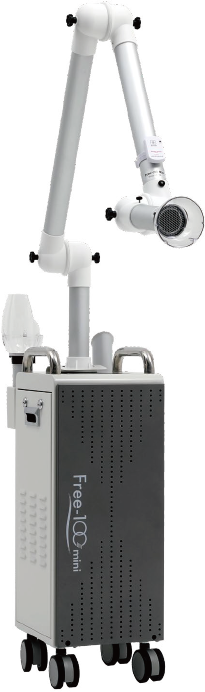

Free-100 mini
Free-100 Mini belongs to the dental extraoral vacuum suction system series. It is a device that minimizes contamination of indoor air by sucking in aerosol particles or small water drops when using a high speed handpiece or scaling. It also comes with a sterilization function. It is equipped with a noise sliencer.
Spec
Model no : Free - 100 min Dimensions : 270mm(W) x 640mm(D) x 275mm(H) Box dimensions : 380mm(W) x 425mm(D) x 1010mm(H) Power supply : single phase AC 200V~240V / 50~60Hz/100V~130V / 50~60Hz Output power(W) : 1,200W(120V), 1,200W(230V) Electrical current(A) : 220V 6A / 110V 15A Air flow : 3.9m3/min Air pressure : 3.0Kpa(Ø40) / 10Kpa(Ø25) / 22.5Kpa(Ø10) Filter : 1st filter (Medium dust filter) 2nd filter (Super bio hapa & ulpa filter)99.97~99.995% 3rd filter (Air filter) Noise level : approx. 49~65db Free arm size : 1,600mm / Free arm box size : 710mm x 235mm x 280mm Free arm weight : approx. 1.2kg / Free arm box weight : approx. 2.7kg Weight : approx. 27kg / Box Weight : approx. 28kg Control mode : Step 1~12, filter cleaning mode(200T) Basic components : Main body, 3 joint free arm, power cord, O Type hood, 1st spare filter Accessories : Aluminum hood, L Type hood, Hood holder, UV LED lamp, Remote controller, Plasma ionizer Remarks Plaese check the product information before using the electricity in your area. Specifications are subject to change without notice.
Droplets & aerosol splash
Use the Extraoral suction
Extraoral suction
When using a high speed handpiece & scaling, a lot of moisture, smog and aerosol particles are generated. Do you know how many aerosol particles contaminate the room?
Aerosol particles adhere to the bodies of dentists or hygienist during treatment. Also, aerosol particles can contaminate the air conditioners of fans, and my affect the respiratory systems of the patients.
Aerosol particles are very dangerous because they contain blood, saliva, viruses and other foreign substances.
It can be dangerous if an extraoral suction is not used.
There is a very big difference between using and not using an extraoral suction. During treatment, microscopic water drops fly away in the from of aerosol particles.
Make the change, for the health of doctors, hygienists and patients.
Free - 100 mini sucks in moisture, smog and aerosol particles with its powerful suction power to create a clean and pleasant treatment room, and keep it that way.
• Aerosol particles adhere to the body.
• When not using an extraoral suction

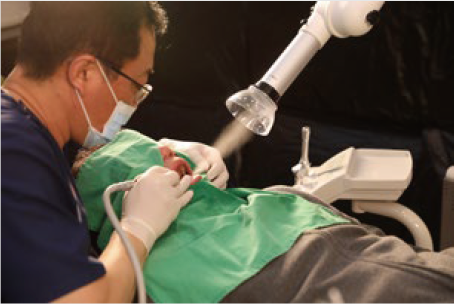

• When using an extraoral suction
Various extraoral suction
Komax manufactures a variety of dental extraoral suction products. We currently manufacture mobile types such as free-100 mini, Free-100 mini Remote, Free-500, Steri air-200, and Steri air-300.
Super filtering system
The 1st filter (Medium filter) filters out. contaminants and moisture. The 2nd filter, super bio filter (Hepa&Ulpa) catches various viruses or ultra fine dusts. It's filtration efficiency is between 99.97% and 99.995%. The 3rd filter purifies the air before emitting it out into the room.
Plasma ionizer & UVC LED generator
Equipped with a safe and certified plasma ionizer to meet customer needs, it kills viruses. In addition, it is equipped with a durable UVC LED generator for medical use to eliminate viruses and harmful foreign substances.
3 joint free arm
The 3 joint free arm consists of a 3-stage joint for the convenience of the user. It helps enable various positions according to the doctor’s treatment pattern, Also, depending on the different types of treatment, it provides the doctor with a convenient place for treatment with various suction hoods.
Noise silencer
Free-100 mini is equipped with a noise silencer inside the suction for a comfortable treatment room.
Medical caster
Free-100 mini is equipped with an advanced medical casters for the user to move it freely and conveniently.
The 3Joint Free Arm helps enable Aerosol sterilization system various positions depending on the doctor's treatment patterns.
Aerosol particles contain blood, saliva, viruses, and other foreign substances.
Aerosol sterilization system
Plasma Sterilization Principle
Basic Principle
•When the airborne water molecules are decomposed by applying a high low pressure on the positive and negative sides, the water molecules (H₂O) are decomposed into H+ and anion O₂-.
•The highly reactive Free Radical (O₂-, OH-, HOO-etc) is adsorbed in the air by harmful substances such as viruses, germs, and fungi, and the electrons are removed to return to the water molecules to remove harmful substances.

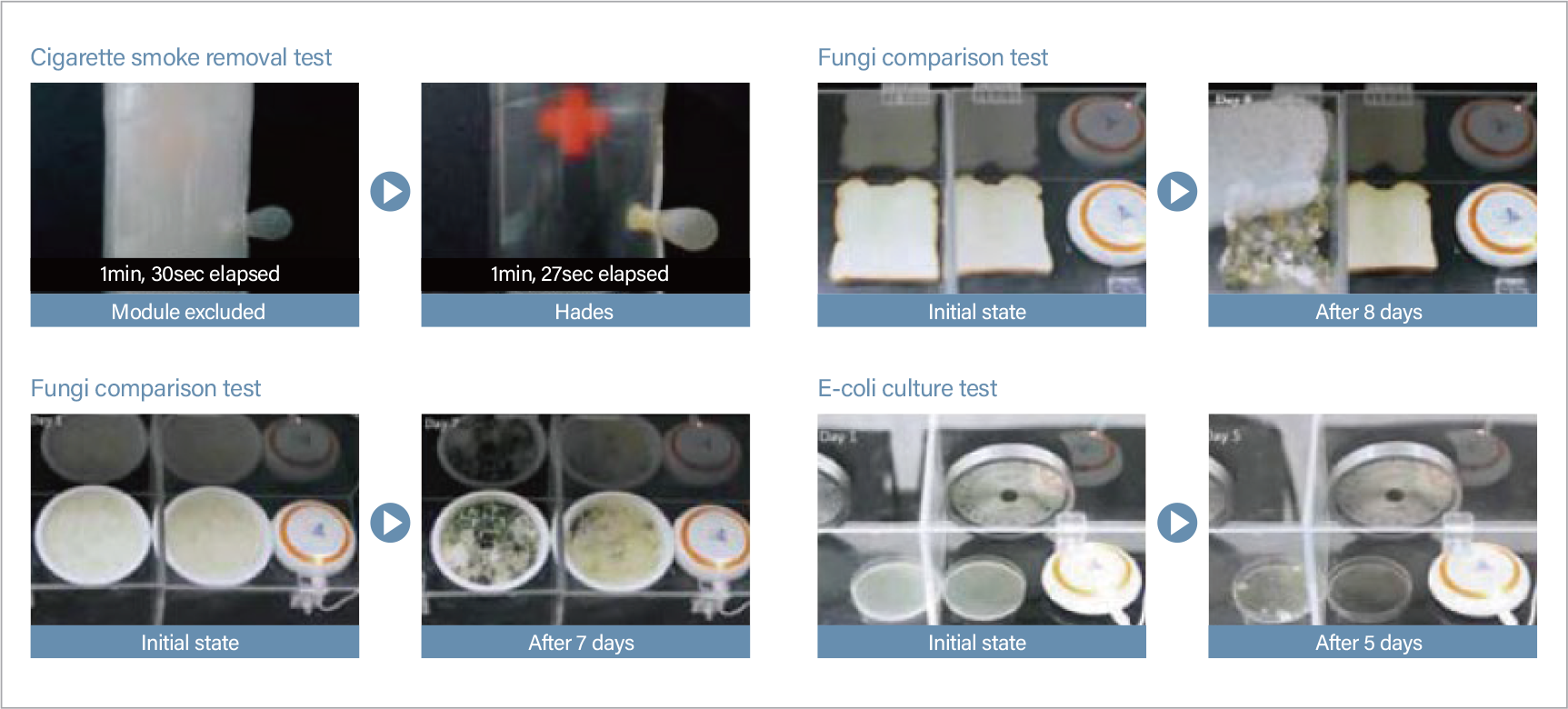

Plasma Test Report
Contamination Source
Effect
Verified by
Anti-viral
Influenza A virus(H1N1)
99.2% removal
Kitasato univ.(Japan)
Feline calicivirus
97.2% removal
H5N1 Influenza A subtype
99.9% removal
Microbiotest(USA)
H7N9 Avian Influenza
99.9% removal
Human coronavirus *Similar to SARS & MERS
99.9% removal
Zika virus
99.9% removal
Anti-bacterial
E-coli
100% removal
Korea Conformity Laboratories(KCL)
Bacillus pyocyaneu
100% removal
Staphylococcus aureus
100% removal
Anti-odor
Ammonia(NH3)
100% removal
Toluene
100% removal
Benzine
100% removal
Formaldehyde
100% removal
Sulfur dioxide
99.5% removal
Nitrogen oxide
99.5% removal
Completeness
Level of ozone generation
Under recommended indoor standards
Korea Institute of Machinery and Materials (KIMM)
Inhalation toxicity
Safe(Test animals analyzed after inhaling for 4 weeks)
Free-100 Mini remote is the mobile remote control series.

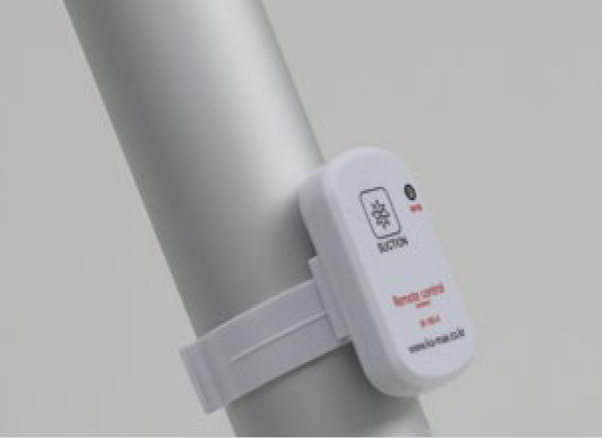

Remote control (Within 10M)
Spec
Model no : Free - 100 mini remote Dimensions(exclude handle) : 270mm(W) x 287mm(D) x 710mm(H) Power supply : single phase 110V~120V / 220V~230V / 50/60Hz
Output power(W) : 1,200W(110V), 1,200W(220V)
Electrical current(A) : 220V 6A / 110V 15A
Air flow : 3.9m3/min
Air pressure : 3.0Kpa(Ø40) / 10Kpa(Ø25) / 22.5Kpa(Ø10)
Filter : 1st filter(Medium dust filter)
2nd filter (Super bio hepa & ulpa filter) 99.97~99.995%
Basic components : Free - 100 mini body, 3 joint free arm, power cord, O Type hood, 1st spare filter
Accessories : Aluminum hood, L Type hood, Hood holder, Plasma ionizer, UV LED lamp
Remarks
Please check the product information before using the electricity in your
area. Specifications are subject to change without notice.
Free-500
Free-500 is the unit chair - fixed series.
This is an extraoral suction to secure a room for treatment and help with treatment. To secure an area for treatment, the 3 joint free arm is attached to a chair light and the suction unit. This is placed in a free space. It has several functions for a comfortable dental treatment room.
Spec
• Model no : Free-500 • Dimensions(exclude handle) : 270mm(W) x 287mm(D) x 710mm(H) • Power supply : single phase 110V~120V / 220V~230V / 50/60Hz • Output power(W) : 1,200W(110V), 1,200W(220V) • Electrical current(A) : 220V 6A / 110V 15A •Air pressure : 3.0Kpa(40P) / 10Kpa(25P) / 22.5Kpa(10P) •Filter : 1st filter(Medium dust filter) 2nd filter (Super bio hepa & ulpa filter) 99.97~99.995% 3rd filter (Air filter) • Noise level : approx. 49~65db • Arm size : 1,600mm • Weight(exclude arm) : approx. 27kg •Control mode : Step 1~12, Prep mode(1~6), Polishing mode(1~12), filter cleaning mode(250T) • Basic components : Free - 100 mini body, 3 joint free arm, power cord, O Type hood, 1st spare filter, Free arm joint & free arm post • Accessories : Aluminum hood, L Type hood, Hood holder, Plasma ionizer, UV LED lamp • Remarks Please check the product information before using the electricity in your area. Specifications are subject to change without notice.
Steri air - 200
Steri air 200 is the floor-mounted series.
It is a system that is used by fixing the 3 joint free arm to the floor, installing the suction unit in a machine room or outdoor, and then connecting, the piping through the floor. This system has advantage of providing space for the treatment room, minimizing noise and emitting exhaust air to the outside.
•Basic components : Ceiling free arm, O Type hood, Remote control, Ceiling joint, Remote control unit
•Accessories : Aluminum hood, L Type hood, Vacuum pipe line
•Remarks
Please check the product information before using the electricity in your
area. Specifications are subject to change without notice.
Steri air - 300
Steri air 300 is the ceiling-fixed series.
It is a system that is used by fixing the 3 joint free arm to the ceiling, installing the suction unit in a machine room or outdoor, and then connecting, the piping through the ceiling. This system has the advantage of providing space for the treatment room, minimizing noise and emitting exhaust air to the outside.
Please check the product information before using the electricity in your
area. Specifications are subject to change without notic.
NCV - L200
Spec
Model no : NCV - L200 Dimensions(exclude handle) : 520mm(W) x 560mm(D) x 1400mm(H) Space installation(minimum) : 750mm(W) x 800mm(D) x 1600mm(H) Power supply : 3 phase 220V / 60Hz Output power(W) : 3.5KW Electrical current(A) : 10.6/6.1A Air flow : 14.0m3/min Air pressure : 1052mmH2O Noise level : approx. 70db Weight(exclude arm) : approx. 105kg Number of ports : 1~5 ports Basic components : NCV - L200 body, power cord wire, 1st spare filter Accessories : Plumbing parts Remarks Please check the product information before using the electricity in your area. Specifications are subject to change without notice.
CERTIFICATIONS
Product
EXTRAORAL SUCTION SYSTEM
Free-100 Mini belongs to the dental extraoral vacuum suction system series. It is a device that minimizes contamination of indoor air by sucking in aerosol particles or small water drops when using a high speed handpiece or scaling. It also comes with a sterilization function. It is equipped with a noise sliencer.
Dimensions : 270mm(W) x 640mm(D) x 275mm(H)
Box dimensions : 380mm(W) x 425mm(D) x 1010mm(H)
Power supply : single phase AC 200V~240V / 50~60Hz/100V~130V / 50~60Hz
Output power(W) : 1,200W(120V), 1,200W(230V)
Electrical current(A) : 220V 6A / 110V 15A
Air flow : 3.9m3/min
Air pressure : 3.0Kpa(Ø40) / 10Kpa(Ø25) / 22.5Kpa(Ø10)
Filter : 1st filter (Medium dust filter)
2nd filter (Super bio hapa & ulpa filter)99.97~99.995%
3rd filter (Air filter)
Noise level : approx. 49~65db
Free arm size : 1,600mm / Free arm box size : 710mm x 235mm x 280mm
Free arm weight : approx. 1.2kg / Free arm box weight : approx. 2.7kg
Weight : approx. 27kg / Box Weight : approx. 28kg
Control mode : Step 1~12, filter cleaning mode(200T)
Basic components : Main body, 3 joint free arm, power cord, O Type hood, 1st spare filter
Accessories : Aluminum hood, L Type hood, Hood holder, UV LED lamp, Remote controller, Plasma ionizer
Remarks
Plaese check the product information before using the electricity in your
area. Specifications are subject to change without notice.
When using a high speed handpiece & scaling, a lot of moisture, smog and aerosol particles are generated. Do you know how many aerosol particles contaminate the room?
Aerosol particles adhere to the bodies of dentists or hygienist during treatment. Also, aerosol particles can contaminate the air conditioners of fans, and my affect the respiratory systems of the patients.
Aerosol particles are very dangerous because they contain blood, saliva, viruses and other foreign substances.
It can be dangerous if an extraoral suction is not used.
There is a very big difference between using and not using an extraoral suction. During treatment, microscopic water drops fly away in the from of aerosol particles.
Make the change, for the health of doctors, hygienists and patients.
Free - 100 mini sucks in moisture, smog and aerosol particles with its powerful suction power to create a clean and pleasant treatment room, and keep it that way.
• Aerosol particles adhere to the body.
• When not using an extraoral suction
• When using an extraoral suction
Komax manufactures a variety of dental extraoral suction products. We currently manufacture mobile types such as free-100 mini, Free-100 mini Remote, Free-500, Steri air-200, and Steri air-300.
The 1st filter (Medium filter) filters out. contaminants and moisture. The 2nd filter, super bio filter (Hepa&Ulpa) catches various viruses or ultra fine dusts. It's filtration efficiency is between 99.97% and 99.995%. The 3rd filter purifies the air before emitting it out into the room.
Equipped with a safe and certified plasma ionizer to meet customer needs, it kills viruses. In addition, it is equipped with a durable UVC LED generator for medical use to eliminate viruses and harmful foreign substances.
The 3 joint free arm consists of a 3-stage joint for the convenience of the user. It helps enable various positions according to the doctor’s treatment pattern, Also, depending on the different types of treatment, it provides the doctor with a convenient place for treatment with various suction hoods.
Free-100 mini is equipped with a noise silencer inside the suction for a comfortable treatment room.
Free-100 mini is equipped with an advanced medical casters for the user to move it freely and conveniently.
Plasma Sterilization Principle
•When the airborne water molecules are decomposed by applying a high low pressure on the positive and negative sides, the water molecules (H₂O) are decomposed into H+ and anion O₂-.
•The highly reactive Free Radical (O₂-, OH-, HOO-etc) is adsorbed in the air by harmful substances such as viruses, germs, and fungi, and the electrons are removed to return to the water molecules to remove harmful substances.
Plasma Test Report
*Similar to SARS & MERS
Laboratories(KCL)
standards
and Materials (KIMM)
after inhaling for 4 weeks)
Institute
UV LED Sterile Field
Plasma Specification
UV LED Specification
Type
Detailed image
Product Type
Free-100 Mini remote is the mobile remote control series.
Remote control (Within 10M)
Spec
Dimensions(exclude handle) : 270mm(W) x 287mm(D) x 710mm(H)
Power supply : single phase 110V~120V / 220V~230V / 50/60Hz
Output power(W) : 1,200W(110V), 1,200W(220V)
Electrical current(A) : 220V 6A / 110V 15A
Air flow : 3.9m3/min
Air pressure : 3.0Kpa(Ø40) / 10Kpa(Ø25) / 22.5Kpa(Ø10)
Filter : 1st filter(Medium dust filter)
2nd filter (Super bio hepa & ulpa filter) 99.97~99.995%
3rd filter (Air filter)
Noise level : approx. 49~65db
Arm size : 1,600mm
Arm weight : approx. 1.2kg
Weight(exclude arm) : approx. 27kg
Control mode : Step 1~12, Prep mode(1~6), Polishing mode(1~12), filter cleaning mode(250T)
Basic components : Free - 100 mini body, 3 joint free arm, power cord, O Type hood, 1st spare filter
Accessories : Aluminum hood, L Type hood, Hood holder, Plasma ionizer, UV LED lamp
Remarks
Please check the product information before using the electricity in your
area. Specifications are subject to change without notice.
Free-500 is the unit chair - fixed series.
This is an extraoral suction to secure a room for treatment and help with treatment. To secure an area for treatment, the 3 joint free arm is attached to a chair light and the suction unit. This is placed in a free space. It has several functions for a comfortable dental treatment room.
• Dimensions(exclude handle) : 270mm(W) x 287mm(D) x 710mm(H)
• Power supply : single phase 110V~120V / 220V~230V / 50/60Hz
• Output power(W) : 1,200W(110V), 1,200W(220V)
• Electrical current(A) : 220V 6A / 110V 15A
•Air pressure : 3.0Kpa(40P) / 10Kpa(25P) / 22.5Kpa(10P)
•Filter : 1st filter(Medium dust filter)
2nd filter (Super bio hepa & ulpa filter) 99.97~99.995%
3rd filter (Air filter)
• Noise level : approx. 49~65db
• Arm size : 1,600mm
• Weight(exclude arm) : approx. 27kg
•Control mode : Step 1~12, Prep mode(1~6), Polishing mode(1~12), filter cleaning mode(250T)
• Basic components : Free - 100 mini body, 3 joint free arm, power cord, O Type hood, 1st spare filter, Free arm joint & free arm post
• Accessories : Aluminum hood, L Type hood, Hood holder, Plasma ionizer, UV LED lamp
• Remarks
Please check the product information before using the electricity in your
area. Specifications are subject to change without notice.
Steri air 200 is the floor-mounted series.
It is a system that is used by fixing the 3 joint free arm to the floor, installing the suction unit in a machine room or outdoor, and then connecting, the piping through the floor. This system has advantage of providing space for the treatment room, minimizing noise and emitting exhaust air to the outside.
Steri air 300 is the ceiling-fixed series.
It is a system that is used by fixing the 3 joint free arm to the ceiling, installing the suction unit in a machine room or outdoor, and then connecting, the piping through the ceiling. This system has the advantage of providing space for the treatment room, minimizing noise and emitting exhaust air to the outside.
Dimensions(exclude handle) : 520mm(W) x 560mm(D) x 1400mm(H)
Space installation(minimum) : 750mm(W) x 800mm(D) x 1600mm(H)
Power supply : 3 phase 220V / 60Hz
Output power(W) : 3.5KW
Electrical current(A) : 10.6/6.1A
Air flow : 14.0m3/min
Air pressure : 1052mmH2O
Noise level : approx. 70db
Weight(exclude arm) : approx. 105kg
Number of ports : 1~5 ports
Basic components : NCV - L200 body, power cord wire, 1st spare filter
Accessories : Plumbing parts
Remarks
Please check the product information before using the electricity in your
area. Specifications are subject to change without notice.
